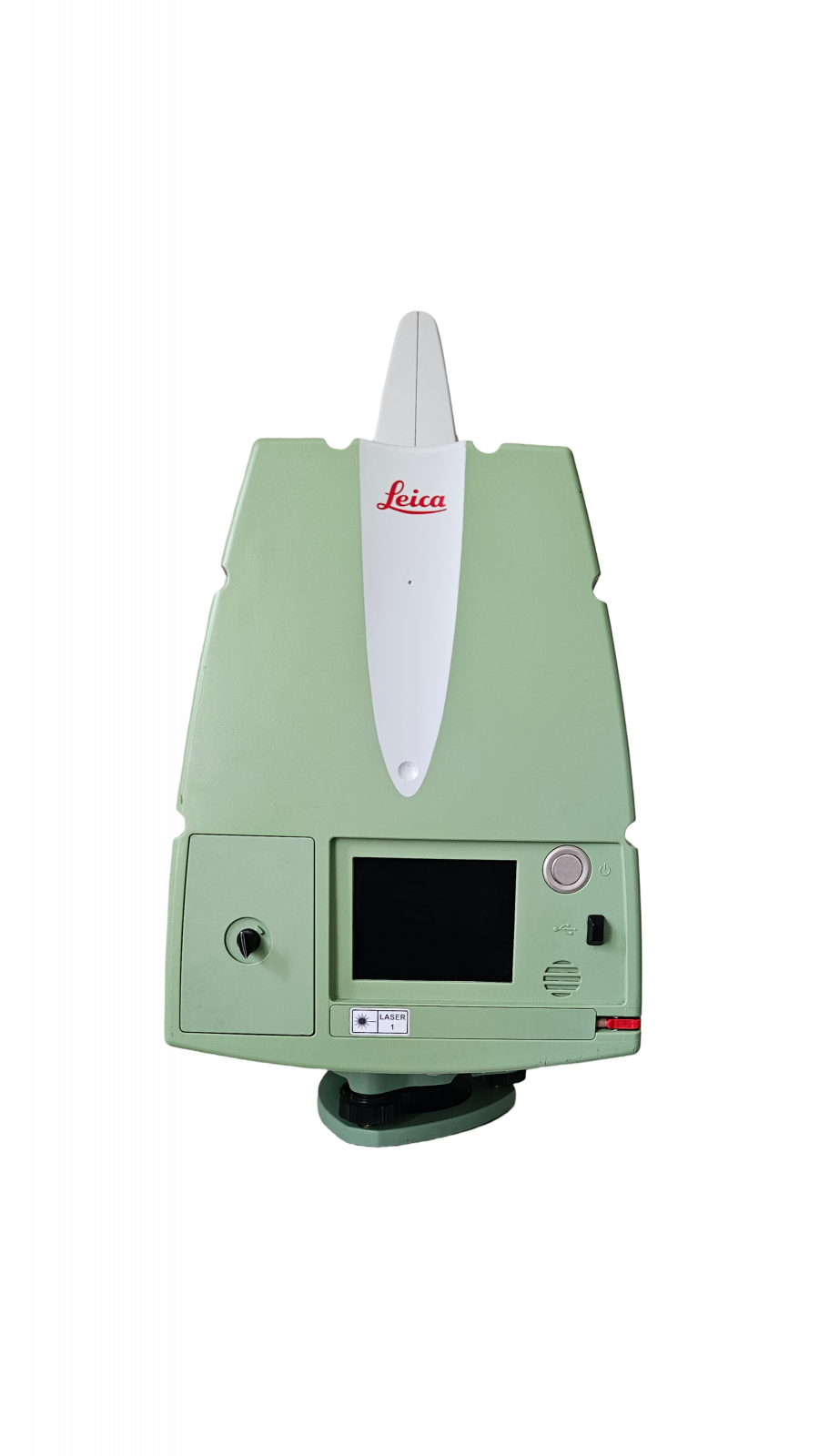

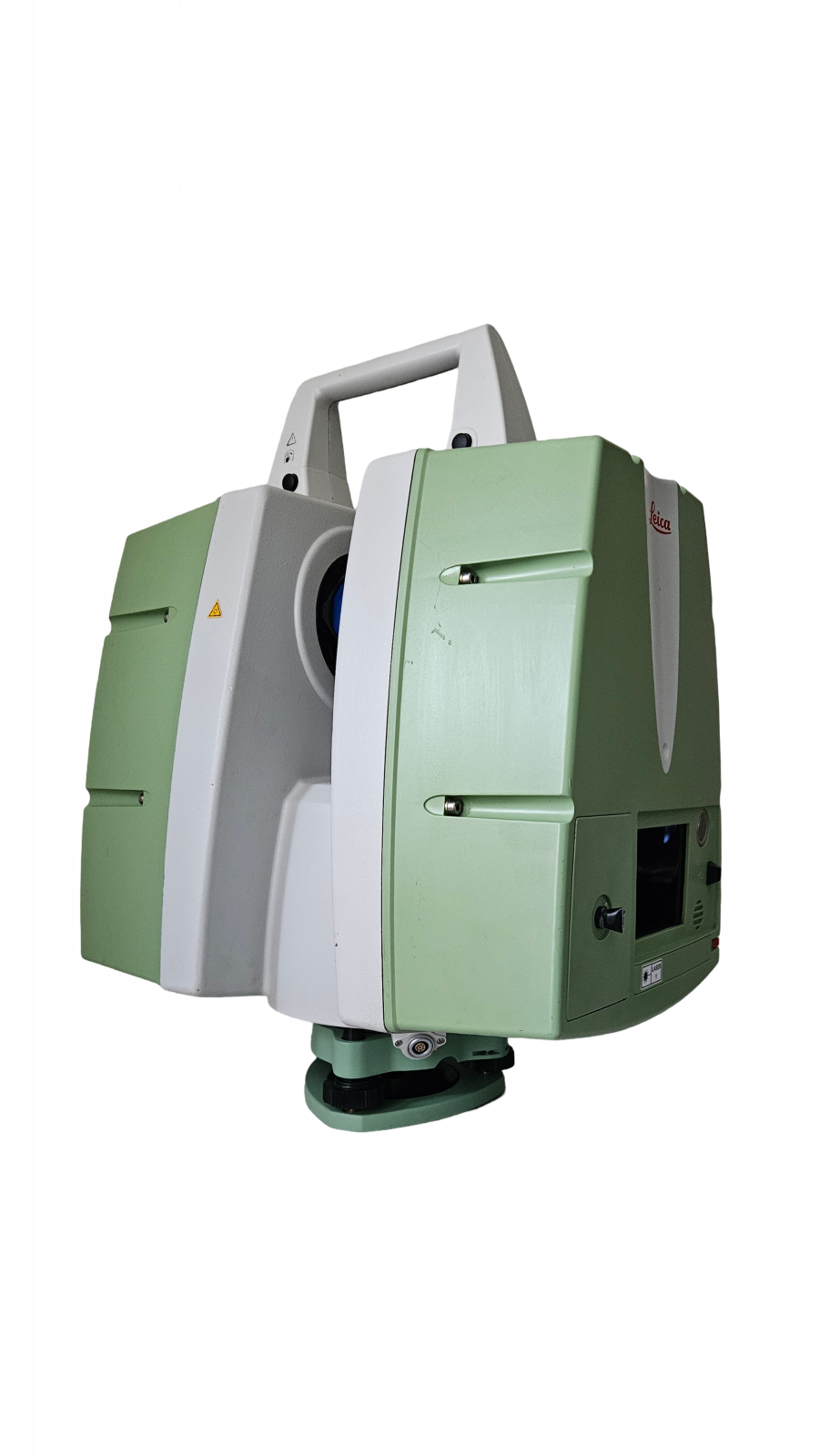

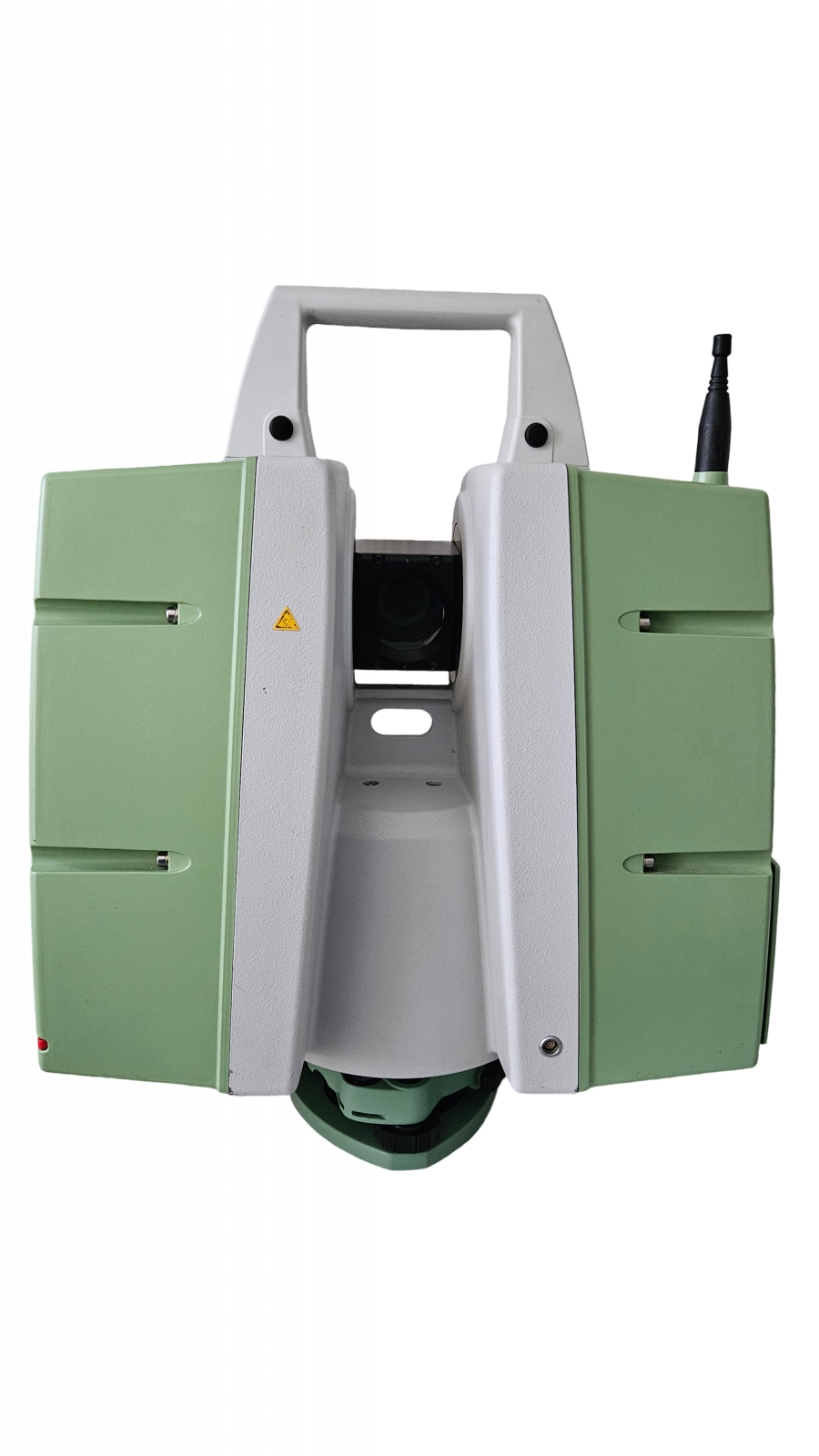

Leica Scan Station P20 SH
Durata de livrare: 24 - 48 de ore
- Descriere
- Caracteristici
- Video (1)
- Review-uri (0)
Leica ScanStation este un scanner laser, conceput sa livreze date de cea mai inalta calitate si imagini HDR, la distante de pana la 120 m, in functie de versiune, si cu o viteza de 1 milion de puncte pe secunda. Precizia inalta pe distanta si cea angulara, combinate cu zgomot redus si cu un compensator cu doua axe, formeaza fundatia unui nor de puncte 3D foarte detaliat si in culori realistice.
Perimite capturarea in detaliu a geometriei 3D pentru drumuri, tuneluri, poduri, constructii si elemente de complexitate mare, cu o precizie neegalata.
ScanStation P20 poate fi integrate in solutia completa Leica pentru scanare si procesare, ce include software de top in domeniu, si anume Leica Cyclone pentru varianta stand-alone, plug-in-ul Leica CloudWorx pentru CAD, sau utilitarul gratuit Leica TruView.
Laser scannerul este foarte durabil si poate fi utilizat chiar si in conditii extreme de mediu, in temperaturi variind de la - 20° C pana la 50° C. Impreuna cu rating-ul pentru praf si apa IP54, se obtine astfel un produs de incredere in orice situatie.
Specificatii:
Specificatii tehnice:
Precizia sistemului:
Precizie pe distanta: 1.2 mm + 10 ppm, la distanta completa
Precizie angulara: 8" orizontal ; 8" vertical
Precizia pozitiei 3D: 3 mm la 50 m ; 6 mm la 100 m
Achizitia tintei: deviatie standard de 2 mm la 50 m
Compensator doua axe: Senzor lichid, compensare real-time, selectabil on/off, rezolutie 1", precizie 1.5"
Sistem de masurare a distantelor:
Lungime de unda: 808 nm (invizibil) / 658 nm (vizibil)
Clasa Laser: 1 (potrivit IEC 60825:2014)
Divergenta fascicul: < 0.2 mrad (FWHM, unghi complet)
Diametru fascicul: ≤ 3.5mm (FWHM)
Reflectivitate: Raza minima 0.4 m
Rata de scanare: pana la 1 milion puncte pe secunda
Zgomot pe distanta: 0.4 mm la 10 m ; 0.5 mm la 50 m
Camp vizual: 360° Orizontal ; 290° Vertical
Camera interna:
Rezolutie: 5 megapixeli / imagine color 17° x 17°
Marime pixel : 2.2 µm
Video: zoom, auto-adjust lumina
Balans alb: insorit, innorat, lumina calda, lumina rece, custom
HDR: tonemapped / full range
Optional camera externa CANON 60D / 70D / 80 D
Alimentare:
Tip: 24 V DC ; 100 - 240 V AC
Tip baterii: 2 x interne Li-Ion ; 1 x extern Li-Ion conectare prun port extern ; hot-swapable
Timp de lucru: Baterie interna - 5.5 ore / 2 baterii ; Baterie externa - pana la 7.5 ore
General:
Spatiu de stocare: 256 GB SSD intern ; dispozitiv USB extern
Transfer date: Ethernet Gigabit ; Wireless LAN ; USB 2.0
Display: Touchscreen 640 x 480 pixeli, cu stylus, color VGA
Laser centrare: precizie 1.5 mm la 1.5 m, diametru 2.5 mm la 1.5 m, selectabil on/off
Dimensiuni: 238mm × 358mm × 395mm
Greutate: 11.9 kg, fara baterii
Temperatura de operare: –20°C la +50°C
Temperatura de stocare: –40°C la +70°C
Umiditate: 95 %, nu condenseaza
Rating IP: IP54
Produsul este fabricat in 2014
